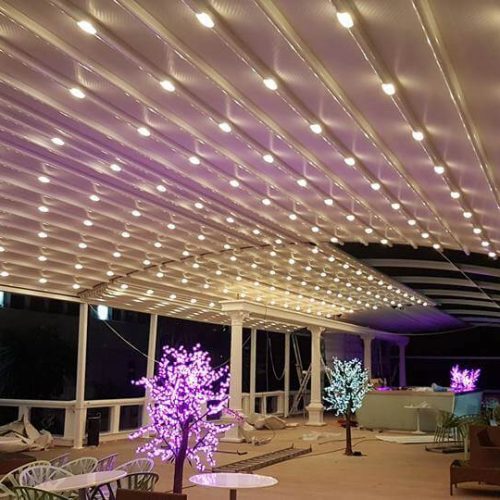

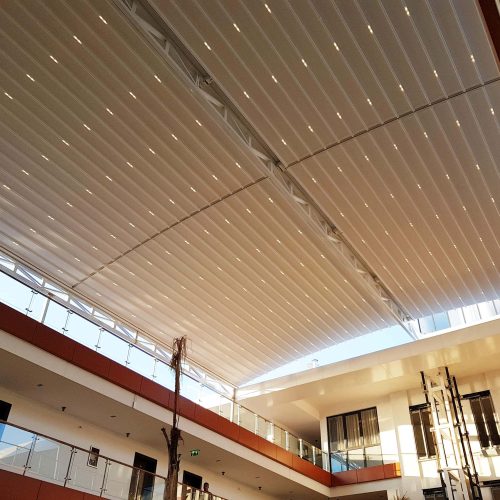

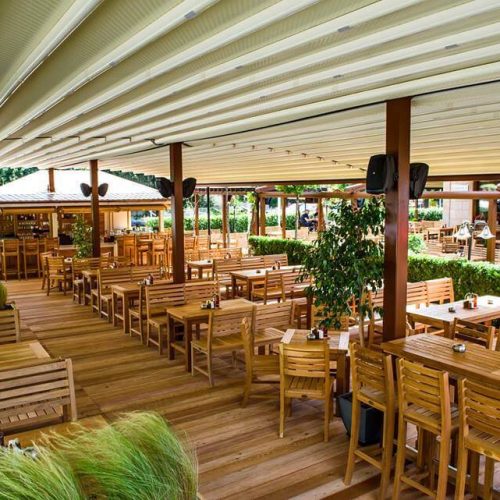

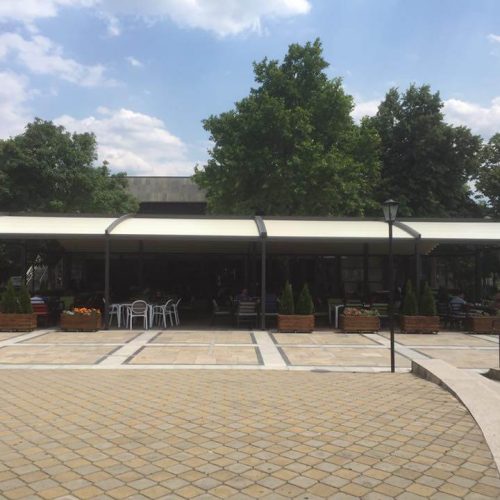

The SPLINE HARMONY retractable pergola systems provides a perfect and functional solution for all weather conditions, for rain, hail, or shine in residential or commercial applications. Unlike traditional pergolas, retractable offers you the option to cover or enjoy natural lighting. The systems are served with remote-controlled motorization, ensuring a silent and quick operation while switching between your choices. The optional embedded hi-powered LED lighting systems with optional remove-controlled dimming allows the user to change the lighting level as needed.
The cover is a German-made fired-rated and waterproof PVC-blackout fabric available in a number of colors and provides maximum durability and resistance to temperature, moisture, and dirt. When the system is not in use, the fabrics are retracted under the standard hood cover to protect from weather elements. When required, linking multiple systems is possible with a channel joining systems that ensures a watertight link. The SPLINE HARMONY system includes an integrated gutter system with internal drainage to carry out water from the rain.
The SPLINE HARMONY Curved Rafter Profiles have been designed with smart side channels that allow easy installation and side Waterguard Channels. Rafter profiles, including a timing belt of T10/33, us driven by a patented six-wheel slider with an easy clip installation system that allows a silent motion when the fabric is retracted. SPLINE HARMONY rafters are served with two different dimensions to provide a maximum range for extention values:
The SPLINE HARMONY- 135 Rafter (80×135 mm.) allows projections up to 14 m. per unit, and widths are customized according to site requirements up to 13 m, totally offering up to 182 sqm per systems.
The SPLINE HARMONY- 200 Rafter (100×200 mm.) allows projections up to 22 m. per unit, and widths are customized according to site requirements up to 13m, totally offering up to 286 sqm per system.
